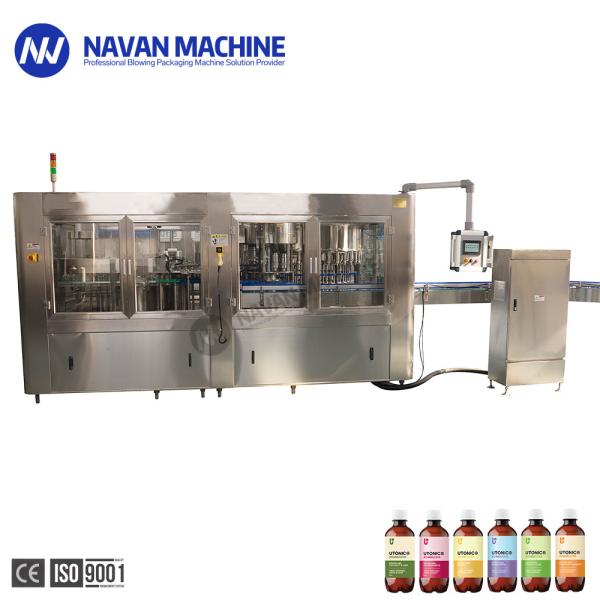

Automatic High Capacity PET Bottled Kombucha Filling Bottling Machine

  • 1
  • 2
  • 3

Brand Name : NAVAN MACHINE

Model Number : CGF40-40-10/12

Certification : CE,ISO

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C , T/T / Cash / West Union / MoneyGram

Supply Ability : 100 Sets Per Year

Delivery Time : 20-45 Working Days After Receiving Your Deposit Payment

Packaging Details : Wooden Case Package/PE Film Package

Material : Food stage stainless steel

Control : PLC & touch screen control

Capacity : 19000-20000BPH@500ml

Suitable Bottle : PET Bottle

Bottle volume : 200-2000ml

Dimension : By order

Function : Washing Filling Capping

After-sales service provided : Engineers available to service overseas/Online support

Contact Now

Automatic High Capacity PET Bottled Kombucha Filling Bottling Machine

This high capacity bottled drinking water filling machine for bottled water maker is mainly applied for filling drinking water / mineral water. It combines rinsing bottle, filling and capping into one machine. The full procedure is automatic. It is suitable for PET bottle to fill drinking water, mineral water, pure water etc.



Product Paramenters:

Model CGF40-40-10/12
Application Spring water / mineral water / pure water / non-gas wine drink and so on
No. of Rinsing/Filling/Capping 40-40-10/12
Production Capacity(500ml) 19000-20000BPH
Filling precision ≤±5mm(liquid level)
User Ambient Conditions Temperature:10~40℃; Humidity: No dew
Suitable bottle specification
Volume=100-2500ml
Diameterφ=50-115mm
Bottle height H=150 ~350mm
Bottle type Plastic bottle / PET Bottle
Bottle neck/Cap Style Plastic Screw Cap φ=20-50mm
Machine material Food stage SS304 OR SS316
Air source pressure 0.5~0.6Mpa
Filling way/principle Gravity filling method
Control system SIMENS PLC+ TOUCH SCREEN
Features No Bottle No Filling No Bottle No Capping
Main Power 7.5kw
Power Supply Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement
Overall dimensions (mm) 4600*2800*2600
Weight (kg) 8500
All machines could be customized , we could design and produce machines according to your request.



Rinser Station:

Automatic High Capacity PET Bottled Kombucha Filling Bottling Machine

Filler station:

Automatic High Capacity PET Bottled Kombucha Filling Bottling Machine

Capper Station:

Automatic High Capacity PET Bottled Kombucha Filling Bottling Machine
