Fully Automatic 6 Cavities 0-2L PET Bottle Preform Blowing Machine

Name: Fully Automatic 6 Cavities 02L PET Bottle Preform Blowing Machine
Brand: NAVAN MACHINE
Price: 20 USD

Buy cheap Fully Automatic 6 Cavities 0-2L PET Bottle Preform Blowing Machine product

Brand Name : NAVAN MACHINE

Model Number : NB-6000

Certification : CE,ISO

Place of Origin : China

MOQ : 1 Set

Price : 20,000USD

Payment Terms : L/C , T/T / Cash / West Union / MoneyGram

Supply Ability : 15-25 Sets Per Months

Delivery Time : 20-45 Working Days After Receiving Your Deposit Payment

Packaging Details : Wooden Case Package/PE Film Package

Max Container Volume : 2Itr

Perform Inner Diameter : 50mm

Max. Bottle Diameter : 110mm

Max bottle Height : 320mm

Cavity : 4

Output : 5500-7500BPH@500ml

Main Machine Size : 3700 x2150x2150mm

Installation Power : 75kw

Contact Now

Fully Automatic 6 Cavities 0-2L PET Bottle Preform Blowing Machine

Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Product Paramenters:

Model No.	Unit	NB-4000	NB-6000
Theoretical output	Pcs/hr	3000-4500	5500-7500
Container volume	L	0.2-2	0.2-2
Perform inner diameter	mm	50	50
Max. bottle diameter	mm	110	110
Max. bottle height	mm	320	320
Cavity	Pc	4	6
Blowing machine size	M	3000 x2130x2150	3700 x2150x2150
Blowing Machine weight	T	4	5.5
Preform loader dimension	M	2350x1350x2650	2350x1350x2650
Preform loader weight	T	0.55	0.55
Max. heating power	KW	48	72
Installation power	KW	50	75

Detailed Product:

Fully Automatic 6 Cavities 0-2L PET Bottle Preform Blowing Machine

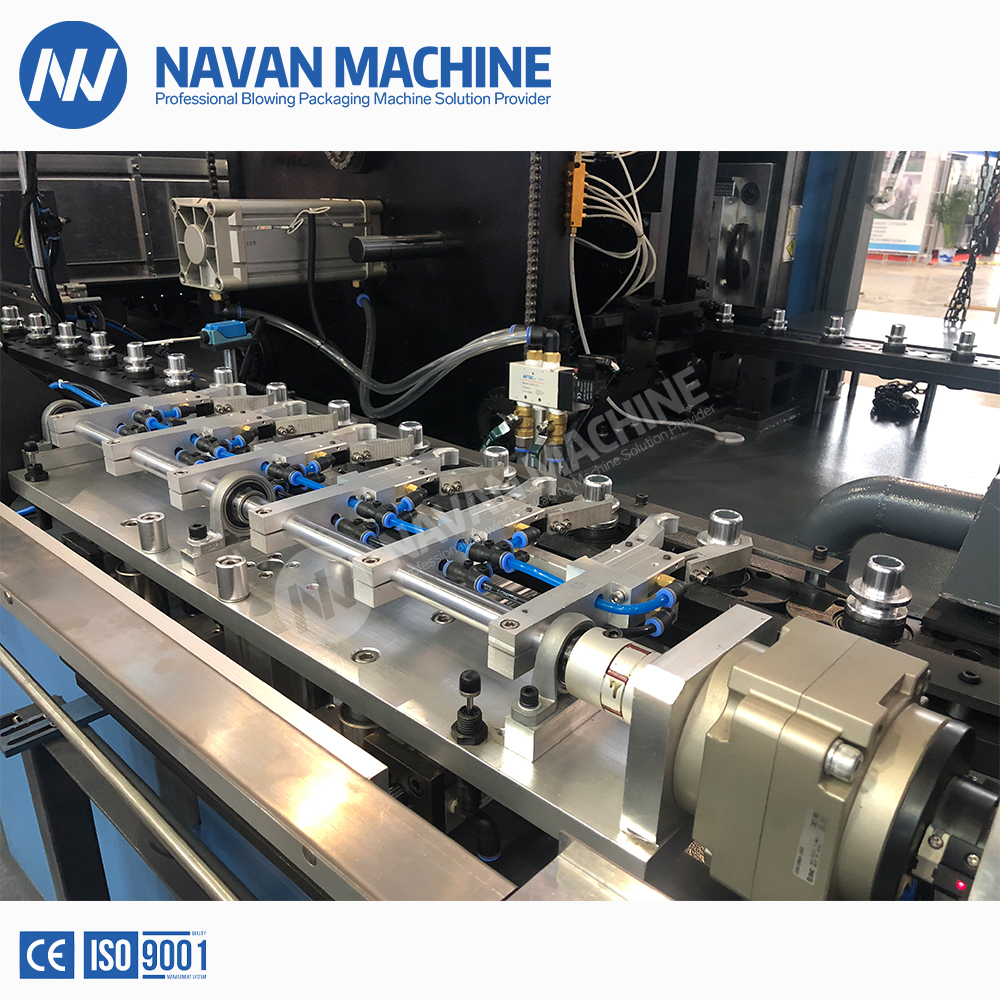

New Auto Preform Unscrambler System for 6 Cavities PET Bottle Blow Molding Machine

*Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preform block and abrasion problem.
 *There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will warn the operator to add the preforms into the hopper when lacks preform instead of stopping the machine.

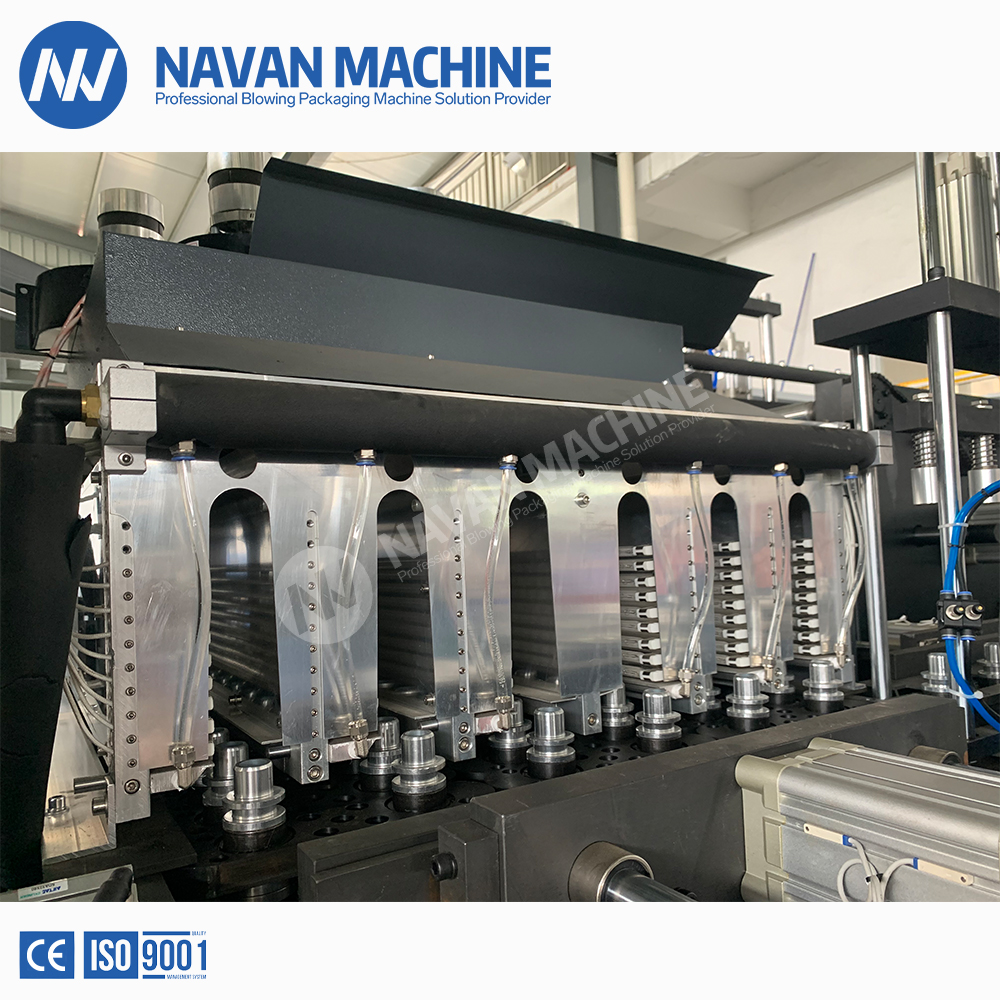

New Heating System for 6 Cavities PET Bottle Blow Molding Machine

*Perfect heating system design decrease power consumption.
 *Special oven design helps power saving and easy maintain.
 *Each lamp position and temperature can be adjusted.
 *Cycle air-cooling system keeps the oven temperature constantly.

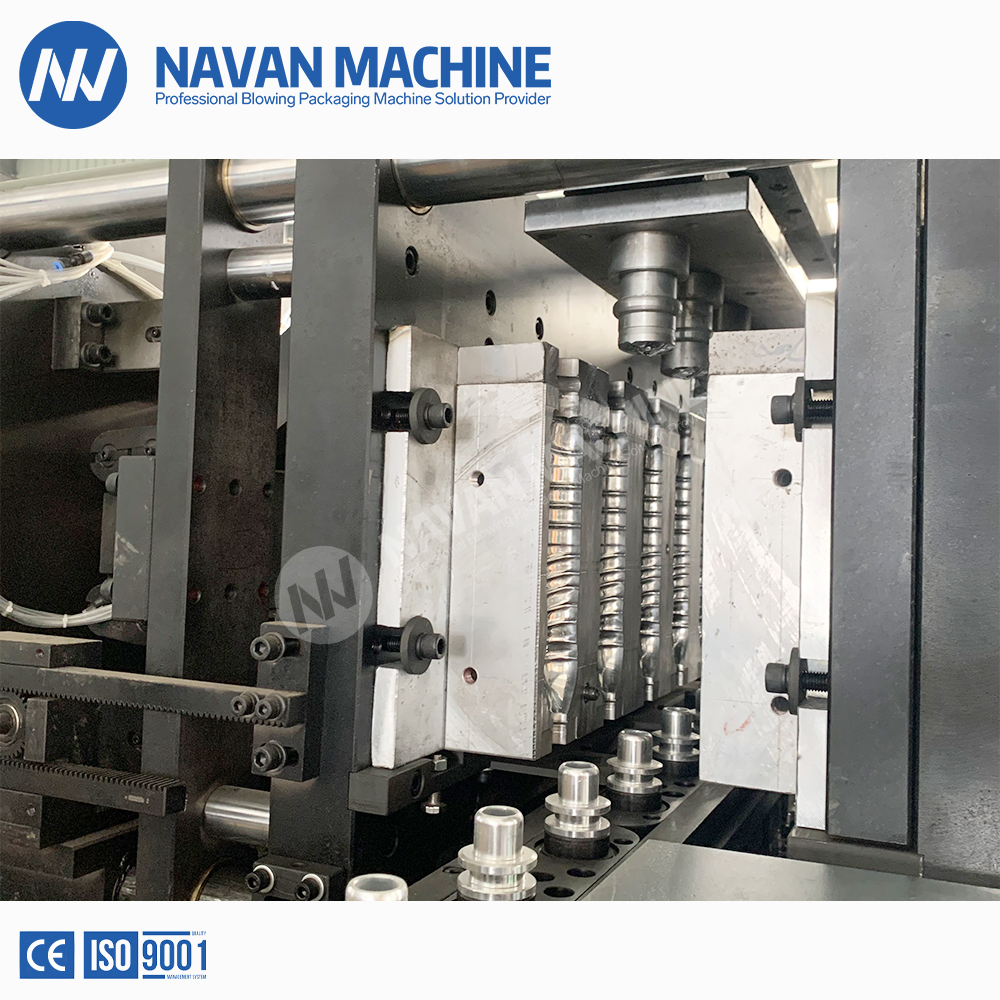

Easy To Change Bottle Shape.

*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same bottle neck diameter.

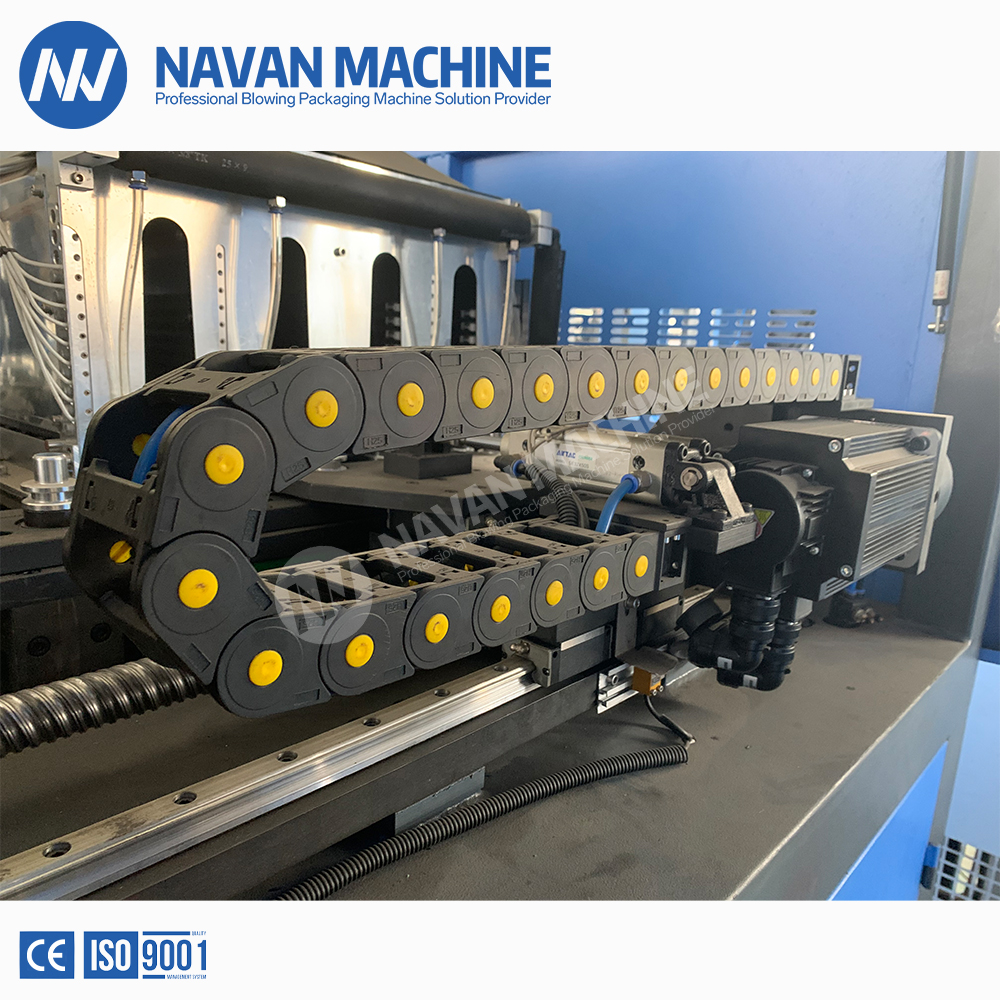

Servo Technology Innovation On Clamping System & Stretching.

* Adopts servo motor to drive the two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.
 * Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.

Intelligent Human-Machine Interface.

*Human-machine interface control, easy operate and monitor.
 *Live production information supervise, auto record production data everyday
 *Failure warning and troubleshooting.

Our Service

Standardized workshop of total 20,000 square meters.
Verification Certificates of equipments: ISO9001:2001; CE Certificate, Logo trademark registration, etc.
The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
