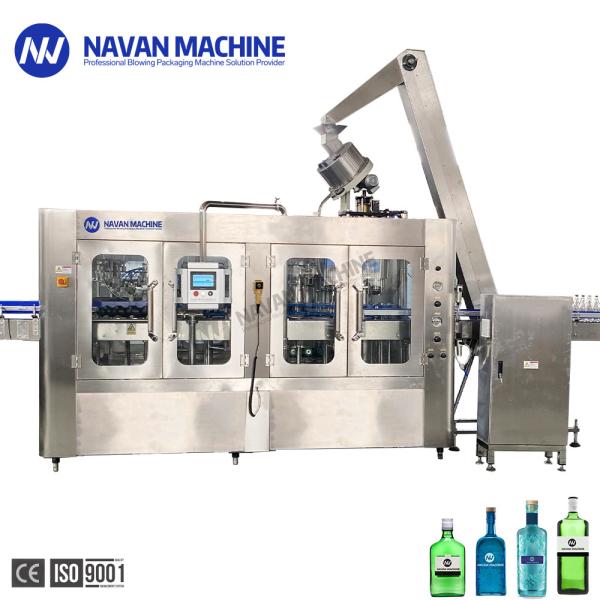

Automatic Glass Bottle Non Gas Liquid Vodka 3 In 1 Filling Machine

Name: Automatic Glass Bottle Non Gas Liquid Vodka 3 In 1 Filling Machine
Brand: NAVAN MACHINE
Price: 1 USD

Buy cheap Automatic Glass Bottle Non Gas Liquid Vodka 3 In 1 Filling Machine product

Brand Name : NAVAN MACHINE

Model Number : NXGF24-24-8

Certification : CE,ISO

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C , T/T / Cash / West Union / MoneyGram

Supply Ability : 15-25 Sets Per Months

Delivery Time : 20-45 Working Days After Receiving Your Deposit Payment

Packaging Details : Wooden Case Package/PE Film Package

Material : Food stage stainless steel

Control : PLC & touch screen control

Capacity : 8000-9000BPH@330ml

Suitable Bottle : Glass Bottle

Suitable Bottle Height : 160-340mm

Suitable Bottle Diameter : 50-100mm

Function : Washing Filling Capping

After-sales Service Provided : Engineers Available To Service Overseas/Online Support

Contact Now

Automatic Glass Bottle Non-gas Liquid Vodka 3-In-1 Filling Machine
This automatic wine filling machine is used to produce glass bottled wine, water and non-gas beverage etc.

Product Paramenters:
Automatic Glass Bottle Non-Carbonated Drink Filling Machine for Wine , Juice , Vodka etc

Main Technical parameters
Model	NXGF24-24-8
Produciton capacity(330ml)	8000-9000
Heads of Rinsing Filling & Capping	24-24-8
Suitable bottle height (mm)	160-340
Suitable bottle diameter (mm)	50 ~ 100
Rinsing Water pressure (MPa)	0.25 ~ 0.3
Filling way	Micro negative pressure filling / gravity filling
Filling temperature (℃)	0~30 or customzied
Filling pressure(MPa)	0.15~ 0.5
Main motor power(kw)	4
Total power(kw)	4.18
Overall dimensions(mm)	328024203200
Weight(kg)	5000

Product Description:
1 - NXGF Wine Filling Machine [ Washing Filling Capping 3 in 1 type ]
1 - Bottle packing solutions to reduce your total cost of ownership
2 - Higher speeds with gentler handling
3 - Hygienic production for top quality water
4 - Reduced consumption with more efficient resources use

Equipment Type	Automatic
Bottle Type	Glass round or square bottle Volume 200 - 2000ml Bottle diameter 50-115mm Bottle height 160-340mm
Output <bph>	up to 20000 BPH
Your product	wine fill/vodka fill/fruit wine and so on
Certificates	CE / SGS / ISO 9001

2 - Glass bottle Separating..
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
Automatic Glass Bottle Non Gas Liquid Vodka 3 In 1 Filling Machine
3 - Glass Bottle Washing.
The gripper equipped with high-efficient spray nozzle, it can develop to any position of inwall of the bottle, and can save rinsing water.

4 - Glass Bottle Filling
The filling valve opens and begins filling when it moves down and touches the bottle neck, the filling valve move up and leave the bottle neck when it finishes filling.
Automatic Glass Bottle Non Gas Liquid Vodka 3 In 1 Filling Machine
5-Capping Part
Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304/316 stainless steel construction
No bottle no capping
Automatic stop when lack of bottle
Automatic Glass Bottle Non Gas Liquid Vodka 3 In 1 Filling Machine

Automatic Glass Bottle Non Gas Liquid Vodka 3 In 1 Filling Machine

Our Service

Standardized workshop of total 20,000 square meters.
Verification Certificates of equipments: ISO9001:2001; CE Certificate, Logo trademark registration, etc.
The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
